Structure
- Supports one incoming distribution cable via an oval entry port
- Supports two outgoing distribution cables for expansion
- Supports outgoing drop cables of FRP 2 x 3 mm, depending on the cabinet capacity
- Optical cables are secured with stainless steel clamps, and the central strength member is fixed with a screw
- Equipped with a tray for PLC splitters, allowing easy installation and removal
- Internal space ensures a minimum bending radius of ≥ 30 mm
- Adapter mounting panel designed with a 45° tilt angle for convenient handling
- Three-point locking mechanism; cabinet door opens 180°, fitted with a high-quality rubber gasket
- Hinges are made of aluminum alloy
- Cabinet body material: SPCC-SD steel in accordance with JIS G3141 standard
- Cabinet dimensions: Customizable to project requirements
Product Overview
Technical characteristics

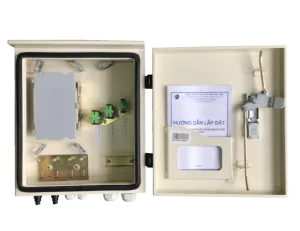

The cabinet is capable of housing PLC splitters, adapters, splice trays, drop cables, and a splicing tool tray to support installation.
-
Operating temperature: -10°C to 70°C
-
Environmental condition: IP54
-
Static load capacity: ≥ 100 kg
-
Service life: ≥ 10 years
Product Overview

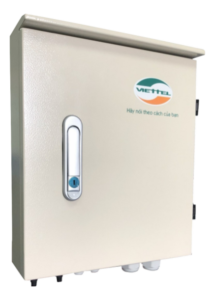

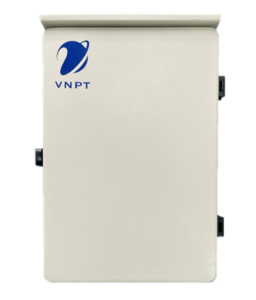

The outdoor optical subscriber cabinet manufactured by Quang Thong Telecommunications Equipment Joint Stock Company is a specialized product designed for distributing optical cables and FTTH optical subscriber lines to end users.
The cabinet features an aesthetically pleasing design and a robust mechanical structure. It supports installation on poles using two stainless steel straps or on walls using four bolts.
The interior of the cabinet is fully welded with no joints, ensuring water and dust resistance in compliance with the IP54 standard, thereby providing excellent protection for internal components.
Structure
The cabinet is designed based on the "Drop and Go" architecture, connecting from distribution cabinets to subscriber cabinets in a continuous (in-line) cable routing manner.
- Supports one incoming distribution cable via an oval entry port
- Supports two outgoing distribution cables for expansion
- Supports outgoing drop cables of FRP 2 x 3 mm, depending on the cabinet capacity
- Optical cables are secured with stainless steel clamps, and the central strength member is fixed with a screw
- Equipped with a tray for PLC splitters, allowing easy installation and removal
- Internal space ensures a minimum bending radius of ≥ 30 mm
- Adapter mounting panel designed with a 45° tilt angle for convenient handling
- Three-point locking mechanism; cabinet door opens 180°, fitted with a high-quality rubber gasket
- Hinges are made of aluminum alloy
- Cabinet body material: SPCC-SD steel in accordance with JIS G3141 standard
- Cabinet dimensions: Customizable to project requirements
Technical characteristics
The cabinet is capable of housing PLC splitters, adapters, splice trays, drop cables, and a splicing tool tray to support installation.
- Operating temperature: -10°C to 70°C
- Environmental condition: IP54
- Static load capacity: ≥ 100 kg
- Service life: ≥ 10 years
