TELECOMMUNICATION EQUIQMENT

Technical Specifications

External Dimensions Customized according to customer requirements
Structure Cabinet Frame Constructed from load-bearing steel bars, capable of supporting loads ≥ 600kg
Cabinet Enclosure
    Three-layer structure
  • Outer layer: galvanized steel with powder coating
  • PU insulation layer
  • Inner layer: galvanized steel with powder coating
Rack Frame
  • 19” standard
  • Made of galvanized steel with powder coating
  • Firmly connected to the cabinet frame and capable of supporting loads ≥ 250kg
Cabinet Door
  • 1 front door
  • Door equipped with a stopper
  • Lock with 3-point locking mechanism
Color RAL 7035 / Light grey (or customized upon request)
Protection Level IP55
Internal Space
  • Space for telecommunication equipment
  • Space for DC power module and 2 LIB batteries
Installation Method
  • Freestanding cabinet on concrete floor
  • 4 oval holes at the base, fixed to the floor with bolts
(*) Technical specifications are for reference only and may be adjusted based on customer requirements

🔎 Product Overview

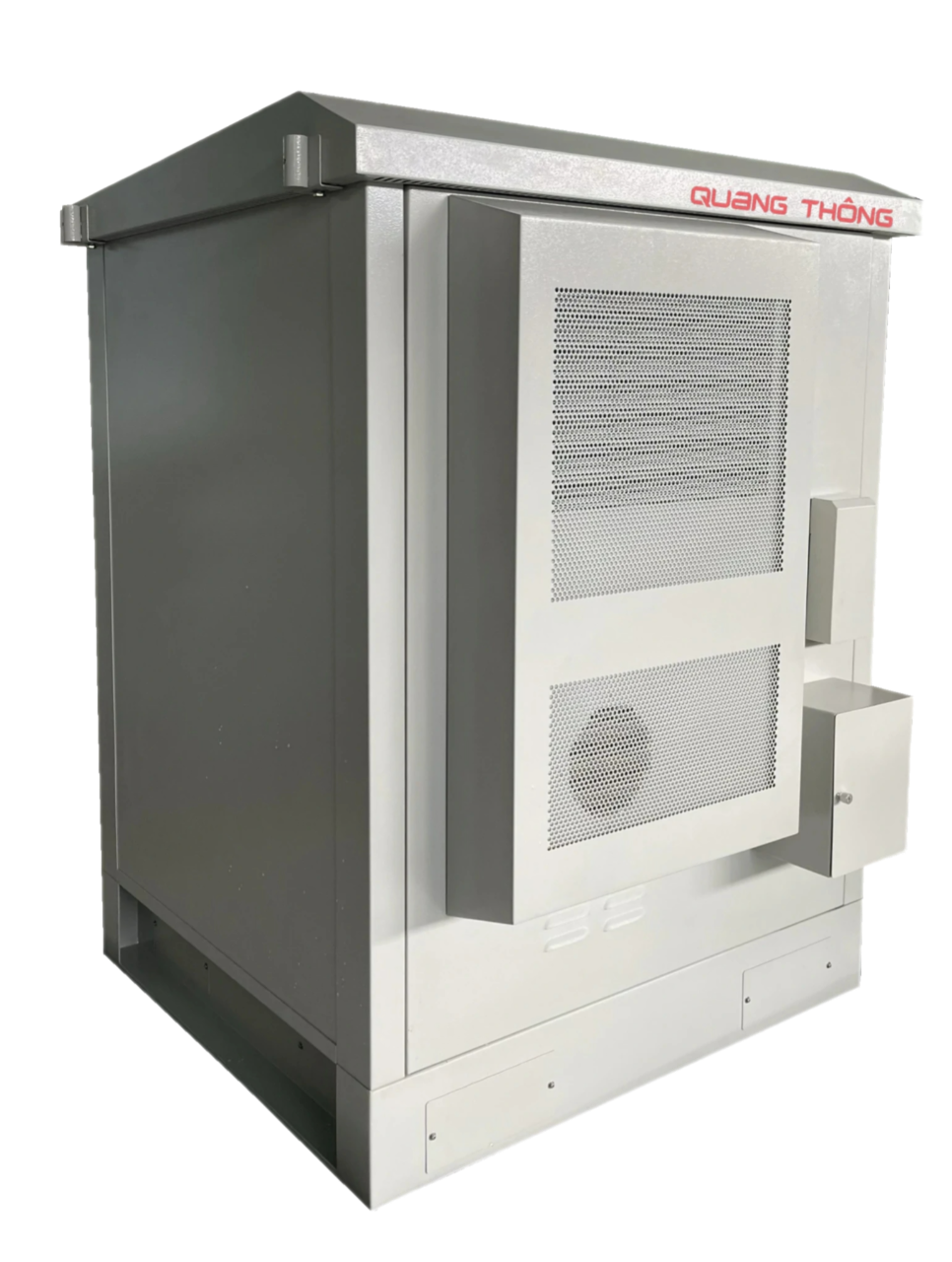

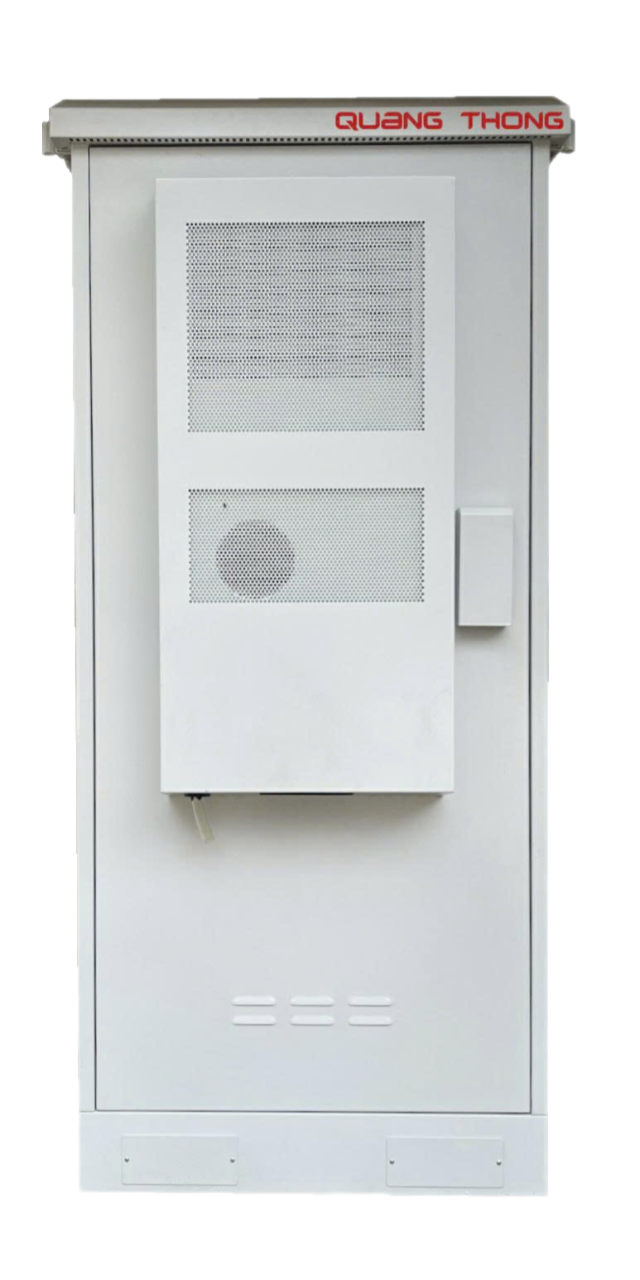

The Mini Shelter Cabinet, manufactured by Quang Thong in Vietnam, is specifically designed for outdoor telecommunication stations, ensuring a stable operating environment for the equipment housed within. The cabinet features a high-quality aesthetic design while providing a secure and reliable workspace for internal devices.

The Mini Shelter is a fully integrated and standardized product, comprising:

  • Cabinet frame: Modular design for easy assembly, disassembly, and transportation
  • 19-inch standard telecom equipment rack
  • AC input system
  • DC power cabinet
  • Cooling system
  • Warning sensors and accessories
  • Integrated lithium battery system, customized based on client requirements
